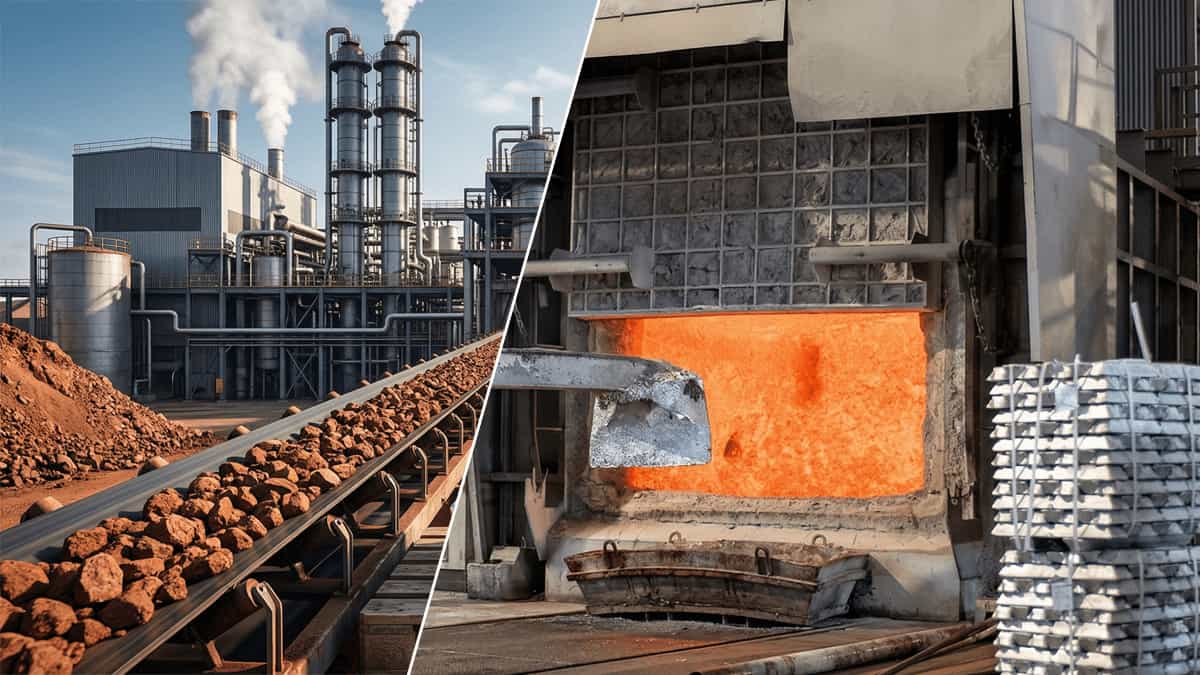

The Production Process of Aluminum & Aluminium: From Ore to Advanced Metal
Whether you spell it aluminum (North America) or aluminium (International), this silver-white metal is one of the most versatile materials in the modern world. Prized for its light weight, strength, and corrosion resistance, its journey from raw earth to finished product is a fascinating story of scientific innovation. This article explores the evolution of the manufacturing process, from 19th-century chemical foundations to the cutting-edge electrolysis driving the industry toward a sustainable future.
The Foundation: The Bayer Process
In the late 1800s, aluminium was considered a precious metal—often more valuable than gold—due to the extreme difficulty of extracting it from its ore. The breakthrough came in 1888 when Karl Josef Bayer invented the process that bears his name. This method provided the first efficient, industrial-scale technique for extracting alumina (aluminum oxide, Al2O3) from bauxite ore.
The Bayer process involves a series of carefully controlled chemical steps:
- Digestion: Crushed bauxite is mixed with a hot, concentrated solution of sodium hydroxide. This dissolves the aluminum-bearing minerals, converting the alumina into a soluble form of sodium aluminate.
- Clarification and Filtration: The slurry is processed to remove solid impurities, such as iron oxides and silica (collectively known as “red mud”).
- Precipitation: The solution is cooled and seeded with fine aluminium hydroxide crystals. This causes the alumina to precipitate out as a solid, crystalline hydrate.
- Calcination: The hydrate is washed and heated to over 1,000°C. This drives off the chemically bound water, resulting in a pure, white, powdery substance: alumina (Al2O3).
While a monumental leap forward, the process remains energy-intensive and produces significant “red mud” waste, a challenge the aluminum industry continues to address through improved recycling and waste management.
The Transformation: Advanced Electrolysis (Hall-Héroult)
The refined alumina is then ready for its final transformation into metallic aluminium. This is achieved through electrolysis in a process named after Charles Martin Hall and Paul Héroult, who independently developed it in 1886.
The core principle remains the same, but modern “advanced electrolysis” has dramatically improved efficiency. The process takes place in a large, carbon-lined steel cell (a “pot”) filled with a molten electrolyte—a mixture of cryolite and other fluorides.
- The Molten Bath: Alumina is dissolved in this bath at temperatures around 950°C.
- The Chemical Reaction: A direct electric current is passed through the cell between a carbon anode and the carbon-lined pot acting as the cathode. This current breaks the chemical bonds in the alumina.
- The Output: The result is pure, molten aluminum, which collects at the bottom of the cell and is periodically siphoned out. Oxygen from the alumina combines with the carbon anodes to form carbon dioxide (CO2).
Comparison of Energy and Resource Requirements
| Feature | Bayer Process (Refining) | Hall-Héroult Process (Smelting) |
| Primary Goal | Bauxite → Alumina (Al2O3) | Alumina → Liquid Aluminum Metal |
| Primary Energy Type | Thermal Energy (Heat/Steam) | Electrical Energy (Direct Current) |
| Temperature | 140°C to 240°C (Digestion) | ~950°C (Electrolytic Bath) |
| Energy Consumption | ~10–15 GJ per tonne of alumina | ~13–15 MWh per tonne of aluminum |
| Major Raw Materials | Bauxite ore, Sodium hydroxide | Alumina, Cryolite, Carbon (anodes) |
| Primary By-product | Red Mud (Bauxite residue) | Carbon Dioxide (CO2) or Oxygen (O2)* |
Note: Modern smelters are increasingly moving toward Inert Anodes. If successful, this would shift the by-product of the Hall-Héroult process from CO2 to pure Oxygen, drastically improving the environmental profile of the aluminum/aluminium industry.
Key Takeaways
- Thermal vs. Electric: The Bayer process is essentially a massive “pressure cooker” that relies on steam and heat, while the Hall-Héroult process is an “electrical sponge” that requires massive amounts of steady electricity.
- The 2:1 Ratio: It takes roughly 2 tonnes of alumina to produce 1 tonne of aluminum. Consequently, the electrical stage (Hall-Héroult) is the most expensive and energy-intensive part of the entire lifecycle.
Modern Innovations in Production
Today, the aluminium industry is undergoing a major technological shift:
- Inert Anodes: A massive development is the deployment of inert anodes made from ceramics. Unlike traditional carbon anodes, these produce oxygen instead of (CO2), drastically reducing the carbon footprint of primary aluminum production.
- High-Temperature Electrolysis: Researchers continue to explore methods that offer greater energy efficiency and faster production rates.
From the foundational chemistry of the 19th century to the high-tech cells of today, the production of this metal is a testament to human ingenuity. As the industry continues to innovate, aluminum/aluminium’s role as a critical material for a sustainable future is only set to grow.
