Aluminium 4032

The High-Temperature Specialist: Forged for Power and Precision

In the diverse family of aluminum alloys, most are designed for general-purpose fabrication, corrosion resistance, or structural strength. Aluminium 4032 occupies a far more specialized niche. As a wrought alloy within the 4000 series (aluminum-silicon system), 4032 is specifically engineered for one of the most demanding applications in mechanical engineering: high-performance pistons and components that must maintain dimensional stability under extreme thermal stress.

Unlike its 4000-series cousins 4043 and 4047, which serve primarily as filler metals, 4032 is a high-strength, heat-treatable wrought alloy designed to be the component itself. Its unique composition—combining high silicon with additions of copper, magnesium, and nickel—delivers a remarkable balance of low thermal expansion, wear resistance, and elevated-temperature strength. This has made it the material of choice for forged pistons in racing engines, turbocharged vehicles, and aerospace applications for decades.

Within the 4000 series, 4032 stands apart as the alloy with the highest tensile strength, achieved through careful alloying and heat treatment. It represents the pinnacle of what aluminum-silicon alloys can achieve when optimized for mechanical performance rather than weldability.

---

Composition and Metallurgy: Engineered for Heat

Aluminium 4032 is a complex, multi-element alloy where each addition serves a specific purpose in enhancing high-temperature performance. Its composition places it at the high-silicon end of the 4000 series, but with crucial modifications that transform it from a simple binary alloy into a sophisticated engineering material.

Primary Composition:

Element	Content (%)	Role in the Alloy
Aluminum (Al)	81.1 – 87.2	Base metal
Silicon (Si)	11.0 – 13.5	Primary alloying element; reduces thermal expansion, increases fluidity, improves wear resistance
Magnesium (Mg)	0.8 – 1.3	Forms $Mg_2Si$ precipitates for age hardening; increases strength
Copper (Cu)	0.5 – 1.3	Solid solution strengthening; improves elevated-temperature properties
Nickel (Ni)	0.5 – 1.3	Critical addition; enhances high-temperature strength and reduces thermal expansion
Iron (Fe)	0 – 1.0	Impurity/controlled addition
Zinc (Zn)	0 – 0.25	Impurity
Chromium (Cr)	0 – 0.10	Grain structure control

The Metallurgical Strategy:

What makes 4032 unique is its multi-pronged approach to high-temperature performance:

1. High Silicon (11-13.5%): Silicon particles in the aluminum matrix dramatically reduce the coefficient of thermal expansion. The alloy expands and contracts less with temperature changes than conventional aluminum. This is critical for pistons, where clearances must remain consistent from cold start to full operating temperature.
2. Nickel Addition: Nickel is relatively uncommon in aluminum alloys, but in 4032 it serves a vital function. It forms intermetallic compounds that remain stable at elevated temperatures, helping the alloy retain strength when other alloys would soften.
3. Copper and Magnesium: These elements enable precipitation hardening through the formation of $Mg_2Si$ and $Al_2Cu$ phases, providing the base strength that nickel then helps maintain at temperature.
4. Wrought, Not Cast: While many piston alloys are cast, 4032 is a wrought alloy, meaning it is mechanically worked (forged) after casting. This eliminates porosity and aligns grain structure, producing components with superior fatigue resistance and reliability.

---

Core Properties: Precision Under Pressure

1. Low Coefficient of Thermal Expansion

The most prized property of 4032 is its low thermal expansion. With a coefficient of $19.4 \times 10^{-6}/^\circ\text{C}$ (20-100°C), it expands significantly less than typical aluminum alloys like 6061 ($\approx 23 \times 10^{-6}/^\circ\text{C}$). This dimensional stability allows tighter clearances in engines, reducing noise, vibration, and oil consumption.

2. High Strength at Elevated Temperatures

4032 retains a greater fraction of its room-temperature strength at 200-300°C than most aluminum alloys, thanks to its nickel and copper additions. This makes it suitable for components that experience continuous thermal cycling.

3. Excellent Wear Resistance

The high silicon content creates hard, wear-resistant silicon particles within the softer aluminum matrix. This provides a natural bearing surface that resists scuffing and galling against cylinder walls.

4. Good Forgeability

Despite its high silicon content, 4032 exhibits good hot workability and can be precision-forged into complex shapes. Hot die forging is typically performed in the range of 371-510°C.

5. Important Limitation: Not for Cold Working

4032 cannot be cold worked due to its high silicon content and limited ductility. All forming must be done hot.

---

Specifications and Standards

Aluminium 4032 is recognized under multiple international designations:

Standard	Designation
AA (Aluminum Association)	4032
UNS	A94032
EN	EN AW-4032 (AlSi12,5MgCuNi)
JIS (Japanese)	A4032
ASTM	B247 (forgings)
SAE	J454

---

Primary Applications: Where 4032 Excels

Aluminum 4032 is a specialist alloy, used almost exclusively in applications requiring its unique combination of thermal stability and wear resistance.

Automotive – Forged Pistons

4032 is the premium material for forged pistons in high-performance internal combustion engines.

• Racing Engines: Used where thermal and mechanical loads are extreme.
• Why 4032? The low thermal expansion allows tighter piston-to-cylinder clearances, reducing “piston slap” on cold starts and improving sealing at operating temperatures.

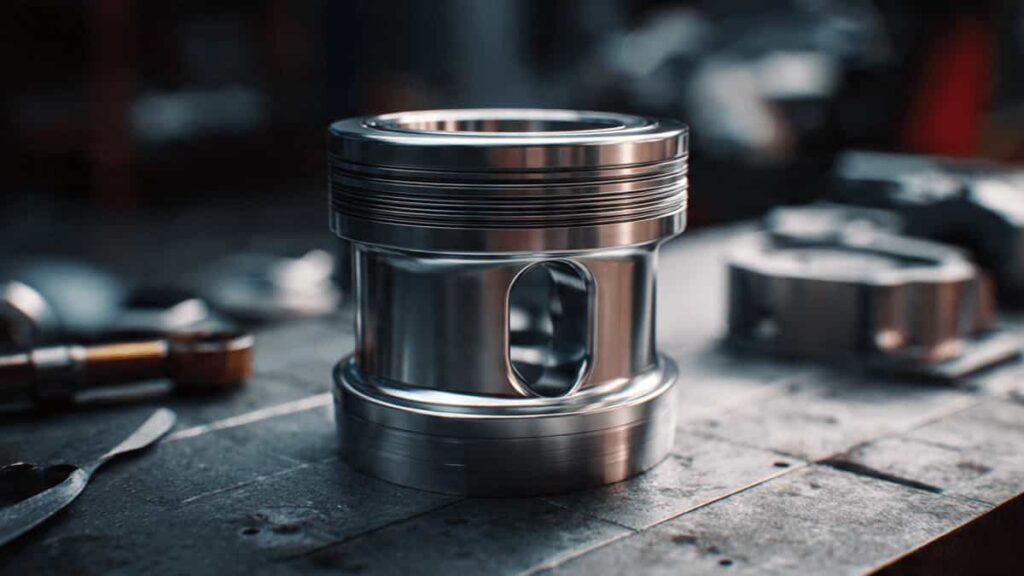

Aerospace and Industrial

• Engine Components: Compressor parts, bushings, and fittings.
• Hydraulic Systems: Pistons and valves where dimensional stability under varying temperatures is critical.
• Precision Machinery: Components for copiers and sound recording devices where wear resistance is paramount.

---

Why Choose 4032? A Strategic Comparison

Property / Alloy	4032-T6	6061-T6	2618-T6
Primary Use	Forged Pistons	General Structural	High-temp Aerospace
Thermal Expansion	Lowest	High	Low
Wear Resistance	Excellent	Good	Moderate
Tensile Strength	380-415 MPa	310 MPa	440 MPa
Cold Workability	None	Good	Limited

Choose 4032 when:

• You need a forged piston for a performance engine.
• Dimensional stability under thermal cycling is critical.
• Components must resist wear without relying heavily on coatings.

Consider alternatives when:

• You need a general-purpose structural alloy (choose 6061).
• Cold forming is required (4032 will crack).

---

Aluminium 4032 is not an alloy for everyday applications—it is a specialized engineering material designed for one of the most demanding environments in mechanical systems: the inside of a high-performance engine. By balancing silicon and nickel, it creates a material that maintains its dimensions and strength under thermal conditions that would soften conventional aluminum.

For the automotive engineer or the motorsports builder, 4032 remains the gold standard for forged pistons, proving that well-designed aluminum alloys still have no equal in their specific niches.
