The Density of Powder Coating on Aluminium Extrusions

The density of powder coating on aluminium extrusions varies depending on the powder formulation, additives, pigments, and intended performance characteristics. In most cases, powder coatings used on aluminium extrusions have a density ranging from approximately 1.2 to 1.8 grams per cubic centimeter (g/cm³).

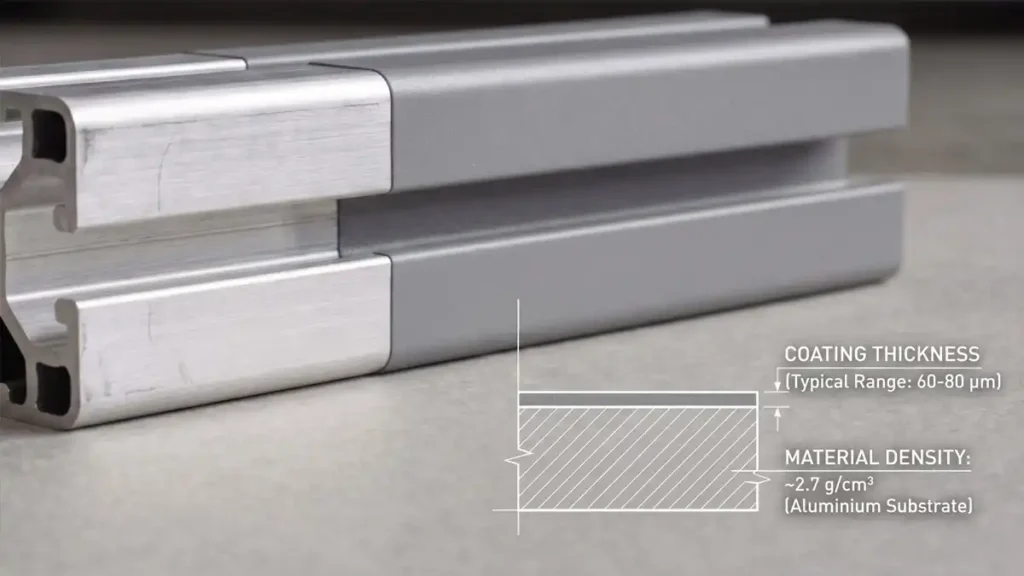

Important: Density vs. Coating Thickness
Density is a material property that describes the mass of the coating per unit volume. Coating thickness refers to the amount of coating applied to the aluminium surface, typically measured in microns. A low-density coating can be applied thickly, while a high-density coating can be applied thinly. The two should not be confused.

Understanding Powder Coating Density Ranges

1. Low Density Coatings

Some powder coatings are formulated to be relatively lightweight, with densities close to 1.2 g/cm³. These coatings are often selected when reducing coating weight or maximizing coverage is important.

2. Standard Density Coatings

Most conventional powder coatings used on aluminium extrusions fall within the 1.4–1.6 g/cm³ range. This provides a practical balance between material usage, durability, appearance, and application efficiency. Standard polyester powder coatings commonly used for architectural aluminium extrusions often fall within this category.

3. High Density Coatings

Specialty powder coatings may have densities approaching 1.8 g/cm³ or higher. These formulations are often used where enhanced durability, abrasion resistance, corrosion protection, or other specialized performance characteristics are required. Additional fillers, metallic pigments, or performance-enhancing additives can increase coating density.

---

Why Density Matters

Powder coating density affects material consumption, coating weight, and coverage rates. Manufacturers and coating contractors often use density values when estimating powder usage, calculating coating costs, and determining how much material will be required to achieve a specified film thickness.

---

Typical Powder Coating Density Ranges

Coating Type	Typical Density (g/cm³)
Lightweight powder coatings	1.2 – 1.4
Standard polyester coatings	1.4 – 1.6
Heavy-duty or specialty formulations	1.6 – 1.8

---

Final Note

When specifying powder coating for aluminium extrusions, both density (g/cm³) and dry film thickness (microns) should be considered. Together, these factors influence coating weight, material consumption, coverage, and long-term performance.
